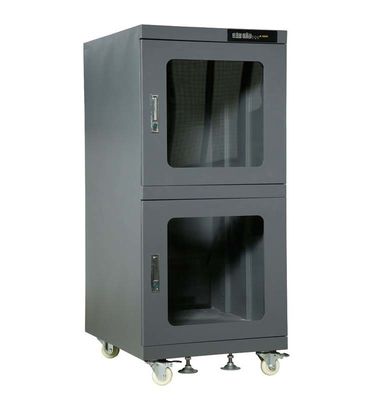

Electronic Humidity Controlled Cabinet For PCB Board SMD Storing Materials

Electronic Humidity Controlled Cabinet For PCB Board SMD Storing Materials

Dry Cabient 25% - 55%RH

Application

The 25% - 55%RH Dry Cabinet is mainly used for storing materials which are sensitive to humidity, such as PCB board, capacitors, optical lens, precision instruments, camera, lens, CD, stamps, half guild slide, samples, etc.

Dry cabinet capacities range from 165 liters to 1482 liters, with or without nitrogen purging function. All dry cabinets comply with J-STD-033C standard. The interior environment is controlled by precise digital controller.

Features

• This is a modularly designed dry cabinet. The main modules are display controller, power box, dehumidifier, shelf, caster wheel, cable. All of the modules can be replaced easily.
• The performance of the dry cabinet can be upgraded by just changing the modules.
• Easy operation, it is a plug and play dry cabinet.
• LED digital display panel, temperature and humidity independent display, humidity can be set and has a memory function.
• Chamber adopts high grade 1mm and 1.2mm cold rolled steel plate, reinforced structure design, excellent load-bearing and sealing performance.
• 3.2mm high intensity toughened glass.
• With two types black surface (anti-static type) or White surface (nonanti-static type)

Specifications

Model	CDE160	CDE320	CDE500	CDE600	CDE700	CDE1500
Product Picture
Humidity Range	25% - 55%RH
Precision	±3.0%RH, ±1.0℃
Power	AC 110/220V ±10V, 50/60HZ
External Dimension    W * D * H (mm)	450*452*940	905*452*1045	600*715*1375	905*800*940	600*710*1980	1200*710*1980
Internal Dimension     W * D * H (mm)	448*425*870	903*425*870	598*687*1205	903*775*870	598*687*1820	1198*687*1820
Capacity	165L	335L	488L	598L	740L	1482L
No. of Shelf	3	3	3	3	5	5
